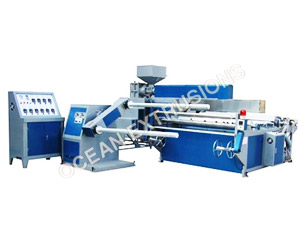

Air bubble sheet line are for the application of producing bubble film and bubble film packaging products. The bubble film is made of LDPE material. It can be used for various packaging purposes such as moisture proving, dust proving, shock proving, and static prevention. It can also make into laminated films with pure aluminium foil, aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging.
Applications
The bubble film is made of LDPE material. It can be used for various packaging purposes such as moisture proving, dust proving, shock proving, and static prevention. It can also make into laminated films with pure aluminium foil, aluminized film, foamed PE sheet, and paper are the applications of sun shading, heat insulation, and packaging. It can be tailor-made into pouches, cut pieces, and mailing envelopes to suit each application. It is available in all 4 universal Bubble Dia, F6, F10, F20 and F30 mm. It finds applications in industries such as electronics, computer, PCB, pharmaceutical bottles, vials, ceramic filters, articles and glassware, engineering and automobile components, machine tools and spares, textile machinery and spares, atomic energy, electrical and aerospace industrial machines and components, copper and aluminium sheets, tubes, profiles, shopping malls and departmental stores, domestic packing, packing of components. When some additives are chosen, the machine can make anti-static bubble film.
| SR NO. |
PLANT MODEL |
SCREW SIZE (MM) |
SCREW L/D RATIO |
FEED SECTION TYPE |
MAX SHEET WIDTH (MM) |
MAX PRODUCTION CAPACITY (KGS PER HOUR) |
TOTAL CONNECTED LOAD (KW) |
MAIN DRIVE (HP) |
POLYMER TO BE PROCESSED |
DIMENSION OF PLANT IN FEET |
| L |
W |
H |
| 1. |
OES1000 |
80 |
30:1 |
SMOOTH FEED |
1000 |
80 |
108.5 |
30 |
LLDPE/LDPE |
30 |
15 |
18 |
| 2. |
OES1500 |
90 |
30:1 |
SMOOTH FEED |
1500 |
125 |
160.5 |
50 |
LLDPE/LDPE |
45 |
25 |
18 |
| 3 |
OES2000 |
95 |
30:1 |
SMOOTH FEED |
2000 |
150 |
169 |
60 |
LLDPE/LDPE |
60 |
30 |
20 |
| 5 |
OES3000 |
105 |
30:1 |
SMOOTH FEED |
3000 |
250 |
178.5 |
100 |
LLDPE/LDPE |
60 |
40 |
20 |
|
